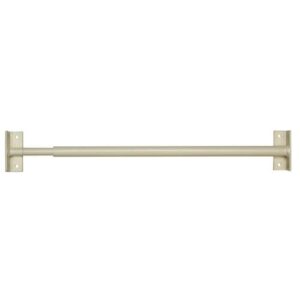

These TSS adjustable bars used are used to provide additional security on windows and are quick and easy to fit.
Fixings not supplied.
TSS – Stock More For Less
TSS believes that quality doesn’t have to come with a high price tag. TSS to provide high-quality products to the trade that meet specification requirements, all at an affordable price. TSS manufactures its products to high standards to ensure their products are an improvement on your current product choice.

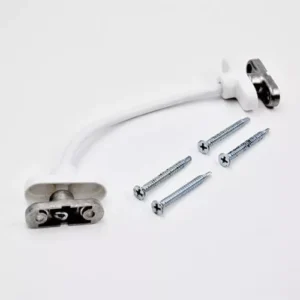

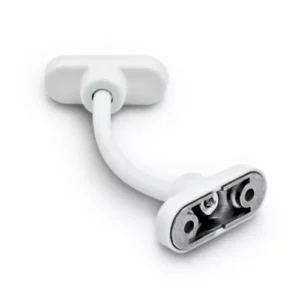

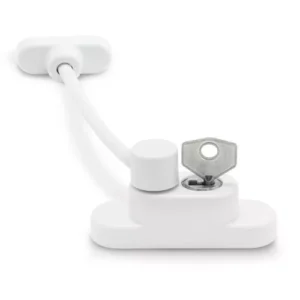

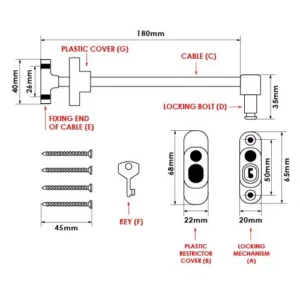

These TSS cable window restrictors are suitable for use on all kinds of windows. They are British Standard making them ideal for both residential and commercial uses.
To comply with the EN 13126-5:2011 + A1:2014 test standard, the Restrictor(s) must be fitted so that the total opening of the whole length of the window opening is less than 89mm when used as a Child Safety Product, and 100mm for other requirements.
The Window Restrictor is designed to take a minimum of a 35kg load when it is pushed open. The window may need to have multiple Restrictors fitted to achieve this requirement. There is no minimum or maximum dimension for which window can be used as long as the window opening is restricted to 89mm or 100mm.

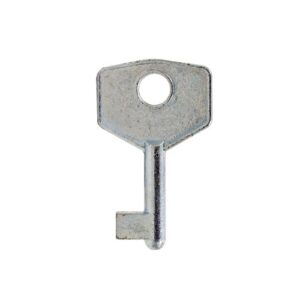

A key is required to lock and unlock these restrictors in place.

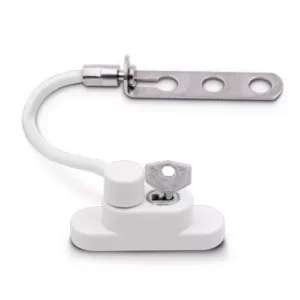

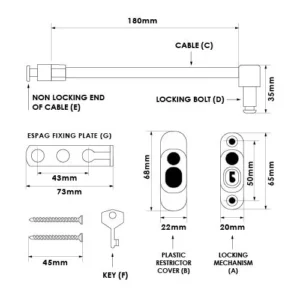

These TSS Key Locking Cable Window Restrictors for Espag Window Handles are suitable for use on all kinds of Windows fitted with an Espag Window Handle.
The Window Restrictor fits snugly under the Window Espag Handle, simply remove the Espag Handle and place the plate between the Handle and window frame before fixing in place again. Avoid drilling more holes into the window than necessary (Only the locking side is fixed with Screws).
A key is required to lock and unlock these restrictors in place. One key is supplied.
The TSS Fanlight Catches offer a neat and practical way to keep your casement windows or loft hatches closed, available in Polished Brass and Polished Chrome.
Best suited to bottom-hung casement windows that might be out of reach, can be used in conjunction with the TSS Pole Hooks:

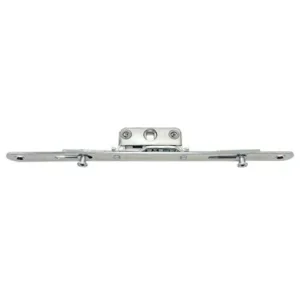

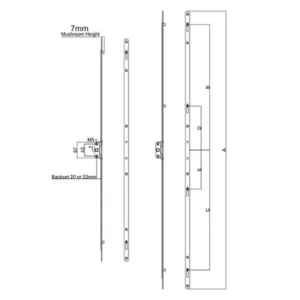

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.
The TSS Espag Range have a 20mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.
The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.
250mm to 800mm have 2x Mushroom Bolts
1000mm have 3x Mushroom Bolts
1200mm have 4x Mushroom Bolts
7mm Spindle Drive
20mm Backset
7mm (8mm) Mushroom Height
43mm Fixing Screw Centres (Suits Standard Espag Handles)
240 Hours Neutral Salt Spray Corrosion Performance
Minimum 40Nm Gearbox Torque Resistance
Sold in Singles or Trade Packs of 20x
Also available in 22mm Backset: see SKUs starting with TSSESP22

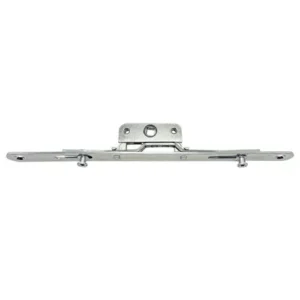

The TSS Inline Window Espagnolette range is a cost effective locking mechanism without compromising on quality.
The TSS Espag Range have a 22mm Backset with a 16mm Faceplate available in a wide range of sizes and a radius faceplate to suit most PVCu and Timber Requirements.
The espagnolette locks are available in 250, 400, 600, 800, 1000 and 1200mm lengths.

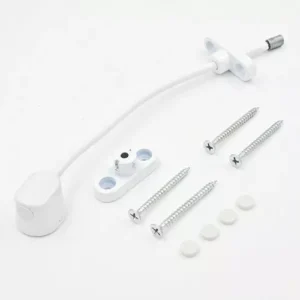

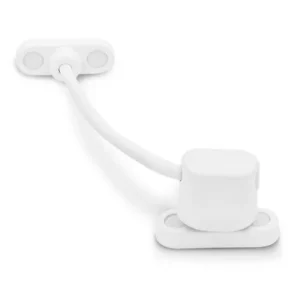

The TSS Keyless Cable Window Restrictors are suitable for all types of Windows including UPVC, Aluminium, and Wooden profiles.
The Keyless feature enables the restrictor to be locked into place without the need for a key and can be unlocked with a push and twist motion allowing the window to be opened fully when necessary. Perfect for fitting on emergency escape windows.
To lock the keyless window restrictor simply push the large cap over the fixing plate at around 90 degrees to it, gently push forwards and twist by around 90 degrees. The restrictor will then lock itself. To unlock, push the large-cap forwards, twist 90 degrees and pull away.
Supplied with:
4x Fixing Screws
4x Screw Caps
The 200mm long restrictor enables the window opening to be restricted to under 100mm and can withstand forces over 1KN.

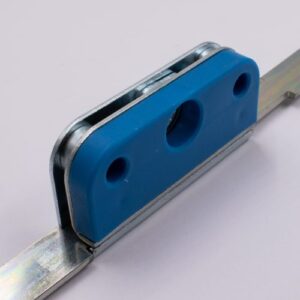

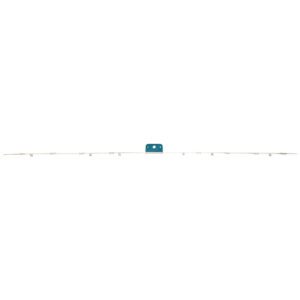

A unique replacement espag system that can be cropped between 400mm and 1000mm and converted from inline to offset by simply removing the packer piece.
Available in 21mm or 25mm backsets. Available in 13mm (Slimline) or 16mm (Standard) faceplate widths.
Espag faceplate can be cropped below 400mm on one side where the espag is to be used as a replacement for a reach mechanism.
This concealed Window Restrictor is a unique restrictor that is designed to fit a wide range of different windows. It is fitted to the frame of the window, keeping it concealed until it needs to be adjusted.
This concealed window restrictor is non-key locking, so that the window can be used as an emergency exit in case of fire etc. In addition, it has a strong child safety catch lock, helping to keep younger children safe near the windows.
The VERSA concealed window restrictor is supplied in both left and right handed variations to fit the frame of your window.
