The ACT5e PROX digital keypad is a simple to use and easy to install standalone access control product for a single door. The unit combines a keypad with a proximity card reader system for up to 50 individual user codes and 50 cards or fobs. Keypad backlighting enhances functionality at night or in poor light conditions. Keypad is contained in a stylish polycarbonate housing, with stainless steel keys and potted electronics, allowing for indoor and outdoor installation. The ACT 5e PROX may be surface or flush mounted on to a standard single gang electrical back box. Supplied boxed.
The ACT 10 digital keypad is a sturdy and durable unit providing an access control solution for up to 2 doors. Made from vandal resistant die cast zinc with backlit stainless steel keys. It facilitates access control on standalone doors and is suited to both the inside or the outside a building.
The ACT 10 is a multi-purpose keypad that caters for access control, door monitoring and interlock applications.
The 7100 series has a flat SAA faceplate for use with single doors and is available in 12v, unmonitored, and fail safe or fail secure versions, as well as versions for AC supply. Fail secure and fail safe operation can also be reversed once on site. The supplied sub cover will suit a 44mm thick door that closes flush with the jamb edge. See the associated parts for extended sub covers. Compatible with aluminium, steel and timber frames.
Often used in conjunction with Aluminium door deadlatch cases such as the Adams Rite 4710 series lock cases.
*Please note, due to its nature this item is sealed with a tamper-evident security seal. Please confirm the item matches the description on the invoice, and is needed, before breaking this seal. Once this seal has been broken, or the item has been removed from its packaging, it is considered to be ‘used’ cannot be returned unless it becomes faulty. Returns for faulty items will be handled in accordance with the relevant manufacturers’ returns procedures.
The 7400 Ultraline range suits single doors and can operate under 15kg of side-load pressure. It can be retrofitted to previous Adams Rite strikes, and operates at 12 or 24v AC or DC. Often used to help satisfy the requirements of Doc M, the release requires half the force to open than the 7100 series release. The innovative and compact robust stainless steel split-jaw design maintains the high level of security expected from Adams Rite while enabling release electrically with over 15kg of sideload pressure.
This is the flat faceplate version designed for use on single doors. For the curved faceplate version for double doors, see sku 7401130
High quality Adams Rite mini shear Magnets, used in applications where the armature is required to pass over the face of the Magnet. Compatible with timber, steel, aluminium and glass frames, suitable for Internal use.
Current Consumption: Pull in 1500mAat 12V DC 1500mA at 24V DC, Holding 500mA at 12V DC 400mA at 24V DC.
Dimensions: Mortice: (H) 164mm x (W) 30mm x (D) 25mm, Surface: (H) 200mm x (W) 38mm x (D) 38mm.
Holding Force: 1500KG, 5 Star strength grade.
*Please note, due to its nature this item is sealed with a tamper evident security seal. Please confirm the item matches the description on the invoice, and is needed, before breaking this seal. Once this seal has been broken, or the item has been removed from its packaging, it is considered to be used and cannot be returned unless it becomes faulty. Returns for faulty items will be handled in accordance with the relevant manufacturers returns procedures.
This Alpro ANSI style release features a long faceplate and is suitable for use on timber doors. Often used in conjunction with mortice latches, the item features a 200mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes. An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.
This Alpro ANSI style release is suitable for use on metal and timber doors. Often used in conjunction with latches, including narrow style dead latch mortice locks found on aluminium doors.
The item features a 124mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes.
An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.
This ALPRO rim release is designed for use with rim nightlatches on inward opening timber doors. It can be used on either 12v or 24v DC supply by following the correct wiring instructions for the application. It is easily field reversible between fail-safe and fail-secure operation. The ANSI style release has a high holding force and is built to a high standard for higher traffic and commercial applications. The additional RM1 rectifier (available separately) allows the release to be run on AC power if required, which is convenient if being used with some AC door entry systems.
*Please note the latch bolt on most British Standard nightlatches is too large to be accommodated by the Alpro Rim Release and it is therefore not suitable for use with them.
The AL2000 is a high security electric release which features monitoring, selectable 12v or 24v (when wiring) and field reversible fail safe/fail secure operation. The additional RM1 rectifier allows the release to be run on AC power where required. Compatible with Aluminium, Steel and Timber frames.
Type: Mortice.
Style: ANSI.
Jaw: None Adjustable.
Dimensions: (H) 175mm x (W) 44.5mm x (D) 26mm.
Field Reversible: Fail safe / fail secure.
Current Consumption: 220mA at 12V DC, 110mA at 24V DC.
The ultimate solution for high traffic access control, Single door and stand alone applications. Alpro fully sealed polycarbonate Waterproof keypads are simple to install and user friendly. These keypads feature a Braille facility. Aesthetically designed and vandal resistant, these keypads are suitable for up to 200 users. Slim and secure with no moving parts they are manufactured to highest standards for external or internal use with IP68 protection.
The DB25 offers a Slimline design and features power reduction allowing for continuous operation without heat generation. Also features automatic voltage regulation and dual monitoring.
The EB250 is a Slimline lock ideally suited to narrow style aluminium doors. It suits sliding, double or Single swing doors and can be fitted to the door or the frame. Compatible with timber and metal doors
The Alpro EB501 electric mini bolt allows for remote access and exit control of most timber and metal doors. Suitable for sliding or swing, single and double action operations. It can be fitted in the frame or in the door and is also suitable for narrow profile joinery cabinets and showcases.
3 year guarantee
Auto re-lock function
Field Reversible: Fail safe.
Dimensions: (H) 150mm x (W) 22mm x (D) 30mm.
Current Consumption: 700mA (activate) 100mA (holding)
The EL900 is supplied with both long (200mm separate) and short faceplates (124mm fitted) and a 25mm extension lip and while available in both fail safe and fail secure. These releases can be easily converted on site. Simply select the voltage required and whether monitoring is required or not. Compatible with Aluminium and Timber frames.
Type: Mortice.
Style: ANSI.
Jaw: None adjustable
Jaw Dimensions:
Dimensions: (H) 124mm x (W) 42mm x (D) 31mm.
Field Reversible: Fail safe monitored.
Current Consumption: 300mA at 12v DC, 150mA at 24v DC.
High quality Alpro mini shear Magnets, used in applications where the armature is required to pass over the face of the Magnet. Compatible with timber, steel, aluminium and glass frames (depends on selected model). Suitable for Internal use.
Current Consumption: Pull in 1150mA at 12V DC 1550mA at 24V DC, Holding 290mA at 12V DC 160mA at 24V DC.
This narrow style waterproof keypad from Alpro is simple to install and user friendly. The aesthetically designed and vandal resistant unit is suitable for up to 200 users. Slim and secure with no moving parts they are manufactured to a high standard and suitable for external or internal use. Features solid state piezo technology with no moving keys, slimline design, visual and audio feedback, as well as timeout functions for code entry. Non-volatile memory CE and UL approved. Long life wear resistant unit. Comes with 3 metre long connection cable fitted and full installation instructions.

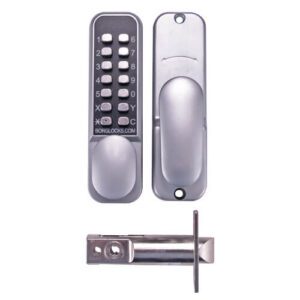

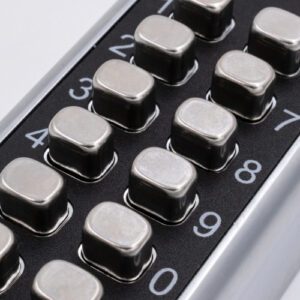

The majority of push button locks require the keypad to be physically removed, the tumblers taken out of the lock itself and rearranged. This is a slow procedure and due to the mechanisms, can lead to the lock being damaged and/or failing. The ECP range is designed to make this a thing of the past and will help encourage the user to change the code often to increase security.
Measurements
Holdback: Optional.
Dimensions: (H) 142mm x (W) 41mm.
Backset: 60mm.
Key Override: No.
Code Free Function: No.
Code Change on Door: No.
Number of buttons:14.
Handed: Reversible.
Operation: Outside entry code, exit via thumbturn.
