Electronic

Low traffic digital door locks fully programmable on the door.

Please note that this product is not subject to our normal returns procedure and will only be repaired by the manufacturer, rather than replaced, Products may be subject to manufacturer’s checks and their policy on replacements will apply.

Code length: 4-6 digits Combinations: 1000,000+ Allows up to 80 User Codes Rapid Retrofit for basic Single code mechanical codelocks On door programming via Master Codes in seconds Allows up to 10 One-Time User Codes to be entered Over 80,000 operations from 2 x 1.5 v AA batteries (supplied) LED indicator option PVD weather resistant, low maintenance finish Low battery warning and emergency battery override Connections for remote release by reception desk button, and alarm release included Code Free entry activated electronically from the keypad Door thickness: 35mm – 60mm Backset: 60mm

Codelock CL4010 is a medium-duty lock. The outside lever turns freely without operating the latch bolt. When a valid code is entered and the blue LED lights, the lever will retract the latch bolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code.

• Holdback: No.
• Dimensions: (H) 171mm (W) 63mm.
• Backset: 60mm.
• Key Override: See table.
• Code Free Function: Yes.
• Code Change on Door: Yes.
• Number of buttons: 10.
• Handed: No.
• Operation: Outside entry via code or key, Inside exit via lever.
• Allows up to 10 one-time user codes
• Remote release connections
• 80 user codes

Please note that this product is not subject to our normal returns procedure and can not be returned once delivered unless it develops a fault. Faulty items will only be repaired by the manufacturer, rather than replaced or refunded, products may be subject to manufacturer’s checks and their policy on replacements will apply.

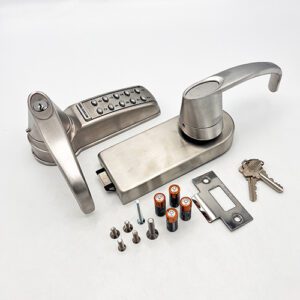

The CL4000 Glass Door Lock is a medium-duty electronic patch door lock offering all the functions of the CL4000. Suitable for inswing doors, the lock fits existing Rondo-type glass door preparations. As standard, the CL4000GD is supplied with a flat strike plate for fitting to solid door frames. When fitting to a glass door with a Rondo prep glass side panel you will need to buy the Glass Door Strike Box.

Medium-duty brushed steel latch bolt head with 8mm (⁵⁄₁₆“) follower. It is supplied with a flat strike plate for fitting to a solid door frame. The outside lever turns freely without operating the latch bolt. When a valid code is entered and the blue LED lights up, the lever will retract the latch bolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into the Code Free option so that anyone can open the door without using a code (classroom function tailpiece required). Code Free option can also be programmed via the keypad.

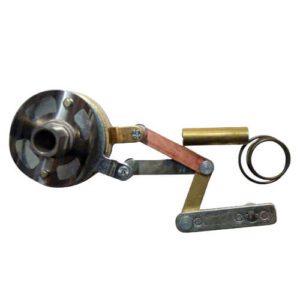

Clutch assembly

Please note that this product is not subject to our normal returns procedure and will only be repaired by the manufacturer, rather than replaced, Products may be subject to manufacturer’s checks and their policy on replacements will apply.

• Suits Unican 1000 Series

Chrome finish (connected):

The Yale Keyless Connected Smart Lock provides you with the freedom to secure your home without needing a key. There is no need to worry if your children arrive home early, or if you’re stuck at work with friends on your doorstep. You can control who and when people have access to your home by setting a PIN code that works for 24 hours for a friend. Open your door via PIN code, key card, key tag, remote fob and even from your smartphone when connected to a smart home system.

 Powered by 4 AA batteries, with a warning when they are running low. In the event of flat batteries, simply touch a 9v battery onto the terminals at the bottom of the unit, providing temporary power to the lock. Designed to be used with 60mm backset nightlatches such as Yale’s 89 or Y3K type locks.
