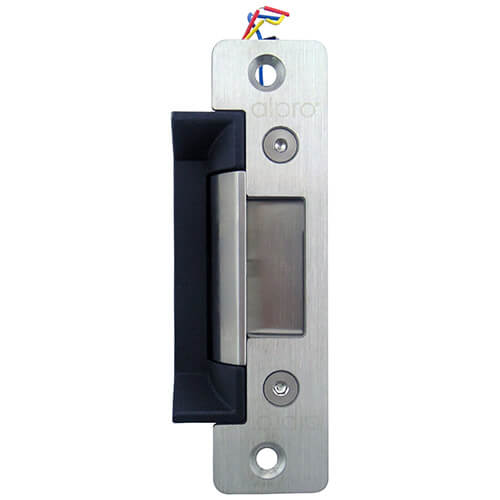

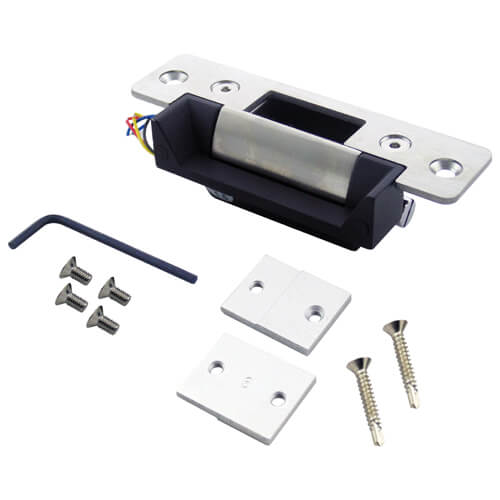

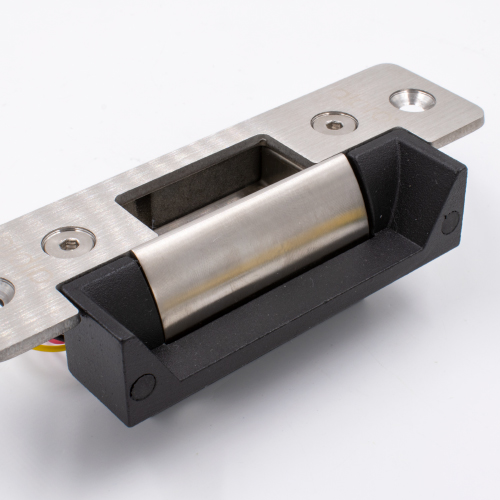

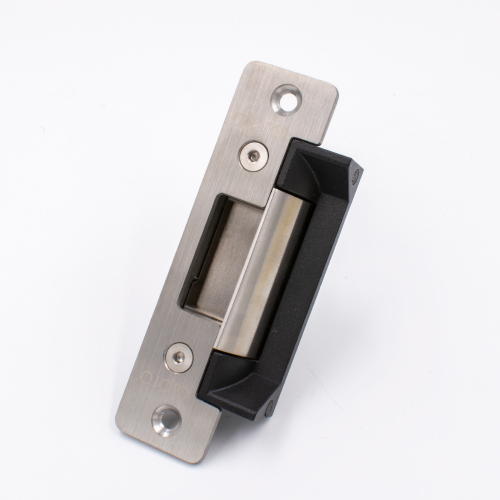

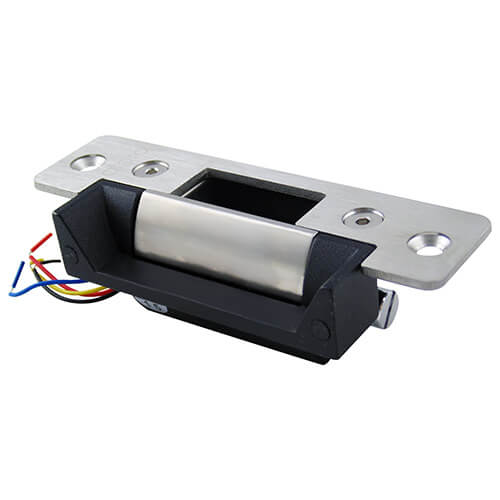

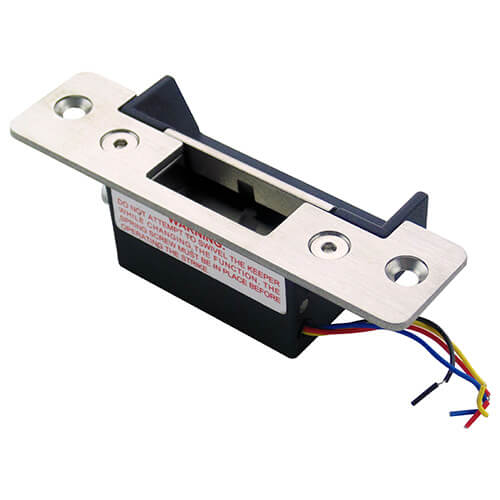

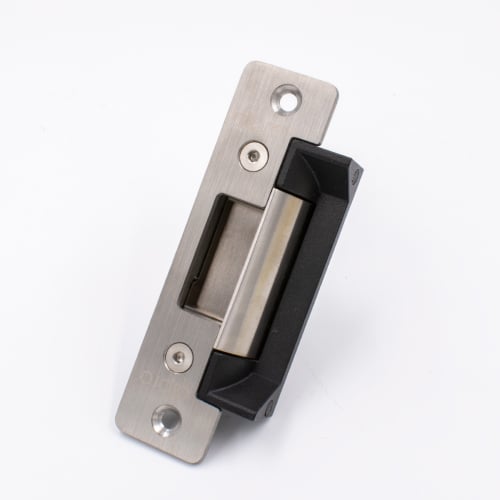

Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate

19 products sold in last 13 hours
Selling fast! Over 7 people have in their cart

This Alpro ANSI style release is suitable for use on metal and timber doors. Often used in conjunction with latches, including narrow style dead latch mortice locks found on aluminium doors.

The item features a 124mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes.

An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.

Add to wishlist
23 people are viewing this right now
  • Type: Mortice.
  • Style: ANSI.
  • Jaw: Non adjustable
  • Dimensions: (H) 124mm x (W) 31mm x (D) 35mm.
  • Field Reversible: Fail safe / fail secure.
  • Current Consumption: 200mA at12v DC, 100mA at 24v DC.
  • Holding Force: 1750kg.
  • Latch Accommodation: 13mm (incl. 3mm air gap).
Operation

Fail Safe, Fail Secure
