Caldwell Bottom Roller

12 products sold in last 20 hours
Selling fast! Over 4 people have in their cart
21 people are viewing this right now

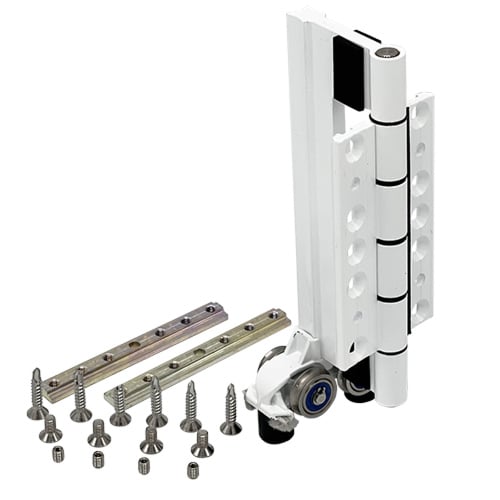

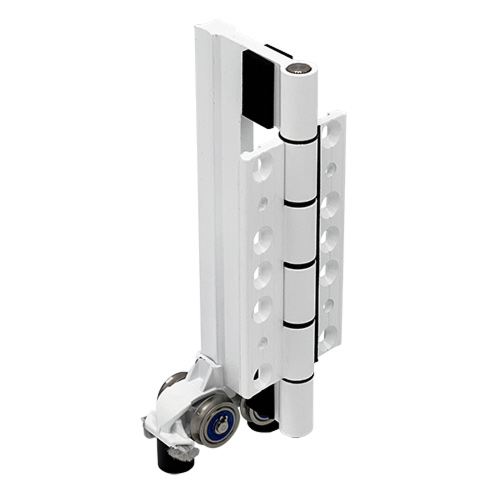

A replacement bottom roller to repair existing bifold installations Bifold door rollers are used at the bottom of folding door installations wherever two hinged panels are sitting directly onto the track. Each roller assembly works with a top guide to support the moving door and to ensure that the door stays in the track.

Type

Bottom Roller Hinge
Colour

28862, White

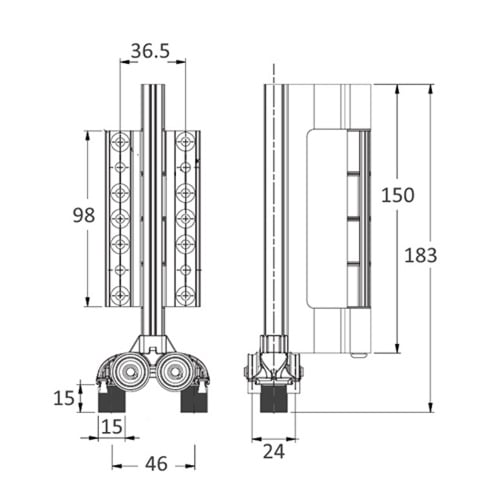

overall-height

31519
Hinge Height

98mm
Hinge Width When Open

52mm
Diameter of Knuckle

12mm
Hinge Screw Centres

36mm
Fixing Holes

7
Countersunk Fixing Holes

5
Top to Bottom Fixing Hole

85mm
Top to Middle Fixing Hole

42.5mm
Middle to Bottom Fixing Hole

42.5mm
2nd to 4th Fixing Hole

57mm
3rd to 5th Fixing Hole

28mm
Roller Height

14mm
Roller Diameter

14.8mm
Roller Centres

45.5mm
