Caldwell Top Guide

15 products sold in last 2 hours
Selling fast! Over 7 people have in their cart
30 people are viewing this right now

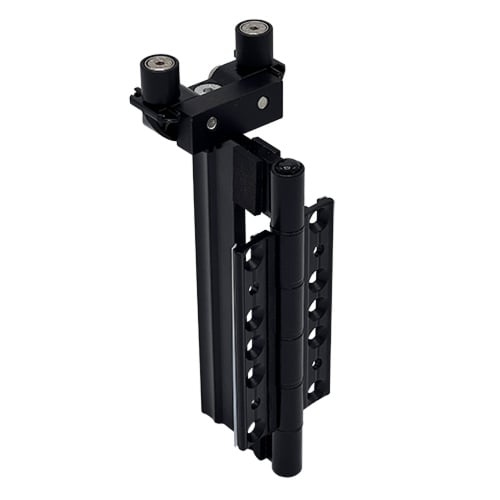

This top guide assembly is used above the roller at the top of bi-fold door installations wherever two hinged door leaves sit in the running track. It works with the bifold roller to support moving door panels at the top to ensure that the door stays in the track.

Type

Top Guide
Colour

28831, 28862, Black, White

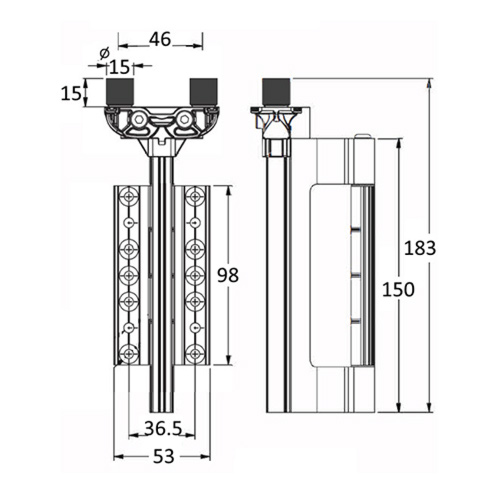

overall-height

31519
Hinge Height

98mm
Hinge Width When Open

53mm
Diameter of Knuckle

13mm
Hinge Screw Centres

36mm
Fixing Holes

5
Countersunk Fixing Holes

3
Top to Bottom Fixing Hole

85mm
Top to Middle Fixing Hole

42.5mm
Middle to Bottom Fixing Hole

42.5mm
2nd to 4th Fixing Hole

57mm
3rd to 5th Fixing Hole

28mm
Roller Height

13.5mm
Roller Diameter

15mm
Roller Centres

46mm
