Cego Surelock Latch 3 Hooks 2 Rollers Split Spindle Multipoint Door Lock – Shootbolt Compatible

28 people are viewing this right now

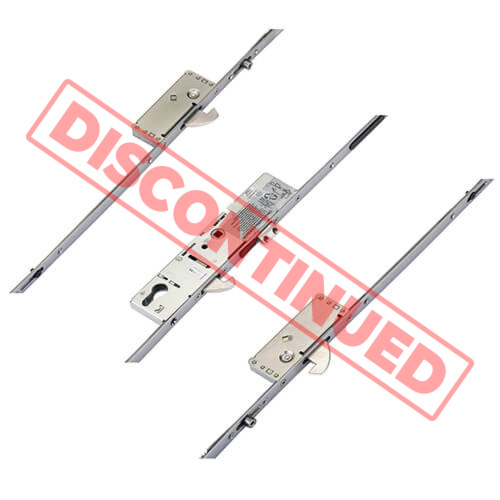

This part is discontinued and is no longer available.

However, part: 66350085AA is a potential alternative. This replacement is almost a perfect match. Some adjustment may be required depending on how the door has been prepared.

A newer Cego Surelock which is a rebranded Era lock. Plastic snib under the latch will be stamped Surelock.

Operation: Split Spindle

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal: Undo screwsin the latch, remove, reverse, reinsert and replace screws.

You may find this lock used as an UPVC door lock or an aluminium door lock.

discontinued	28839
Backset	28840
centres-pz	29273
Faceplate	28842
Spindle Size	28843
rollers	29739
hooks	29871
main-gearbox	30107
Operation	29741
spindle	29742
1-2-or-3-piece	28849
Handing	28834

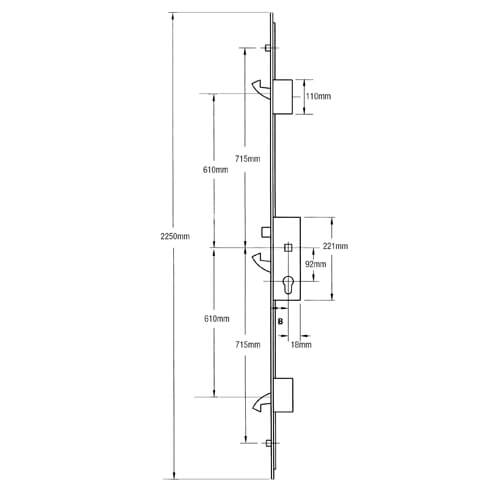

Distance Between Inner Locking Points	1220mm
height	30520
