Clearspan for Smart Visofold 1000 Bi-Fold Doors Top Guide

Colour

Colour

BlackWhite

Clear

23 people are viewing this right now

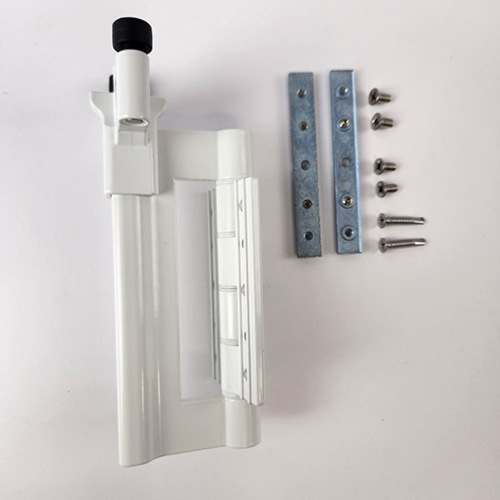

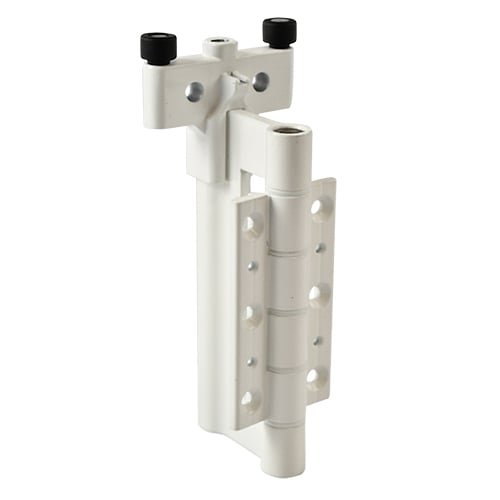

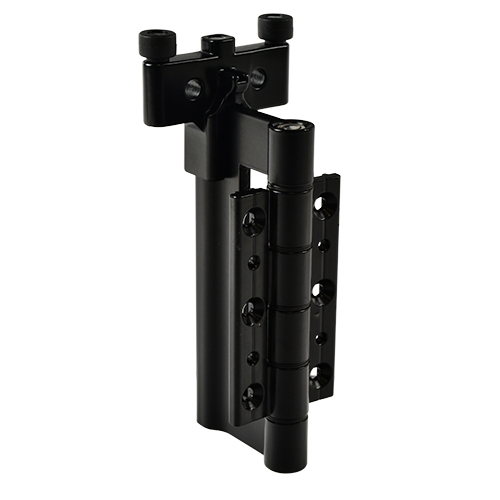

Replacement top guide commonly fitted to Smart Visofold 1000 aluminium bi

Type	Top Guide
Colour	28831, 28862, Black, White
overall-height	31523

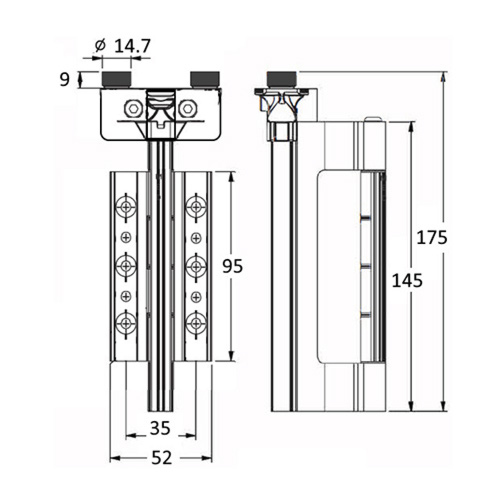

Hinge Height	95mm
Hinge Width When Open	52mm
Diameter of Knuckle	12mm
Hinge Screw Centres	35mm
Fixing Holes	5
Countersunk Fixing Holes	3
Top to Bottom Fixing Hole	72mm
Top to Middle Fixing Hole	36mm
Middle to Bottom Fixing Hole	36mm
2nd to 4th Fixing Hole	40mm
3rd to 5th Fixing Hole	35mm
Roller Height	9mm
Roller Diameter	14.7mm
Roller Centres	57.5mm
