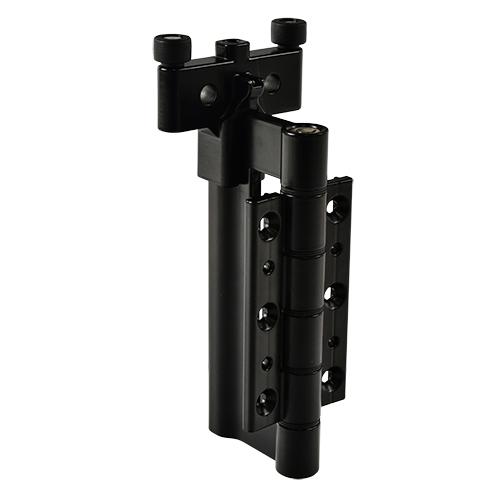

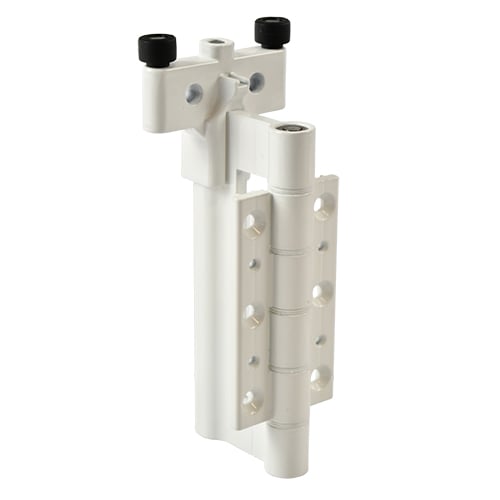

Clearspan for Stellar Aluminium Bi-Fold Doors Top Guide
29 people are viewing this right now
A replacement top guide to repair existing Stellar bifold installations.
| Type | Top Guide |
|---|---|
| Colour | 28831, 28862, Black, White |

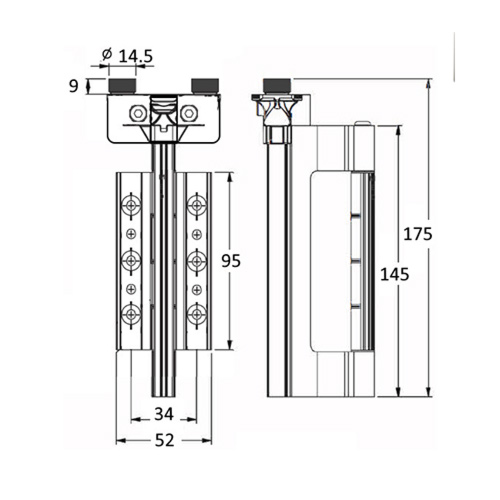

| overall-height | 31523 |
| Hinge Height | 95mm |
| Hinge Width When Open | 52mm |
| Diameter of Knuckle | 12mm |
| Hinge Screw Centres | 34mm |
| Fixing Holes | 5 |
| Countersunk Fixing Holes | 3 |
| Top to Bottom Fixing Hole | 72mm |
| Top to Middle Fixing Hole | 36mm |
| Middle to Bottom Fixing Hole | 36mm |
| 2nd to 4th Fixing Hole | 40mm |
| 3rd to 5th Fixing Hole | 36mm |
| Roller Height | 9mm |
| Roller Diameter | 14.5mm |
| Roller Centres | 56.5mm |
