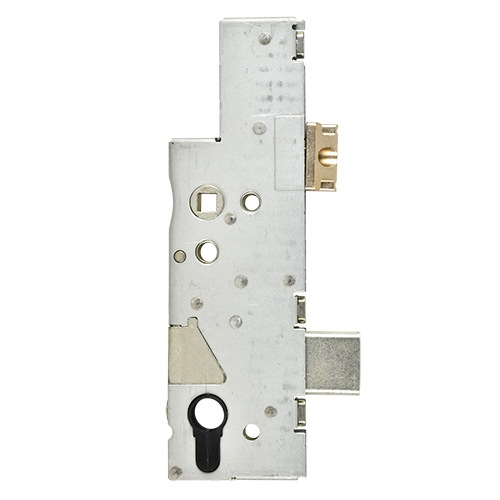

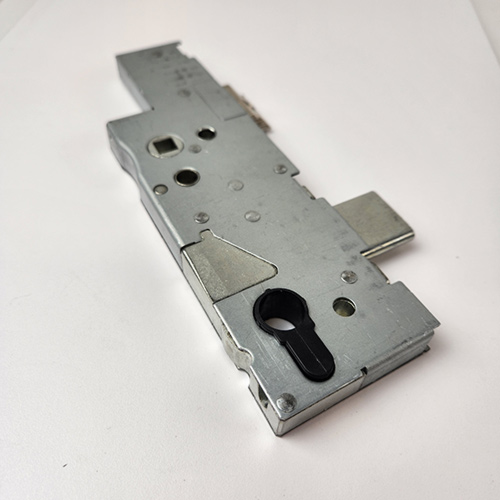

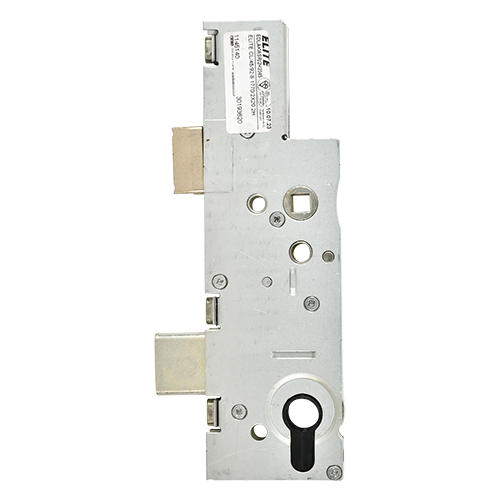

Elite Key Wind Replacement Multipoint Gearbox

Elite keywind gearboxes are available as a 35mm or 45mm backset, single spindle lock.

Elite gearboxes measure 200mm high x backset + 19mm. Be sure to account for 2mm for the faceplate when measuring the backset.

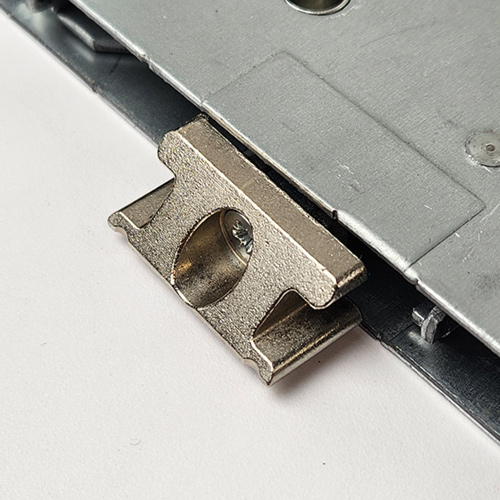

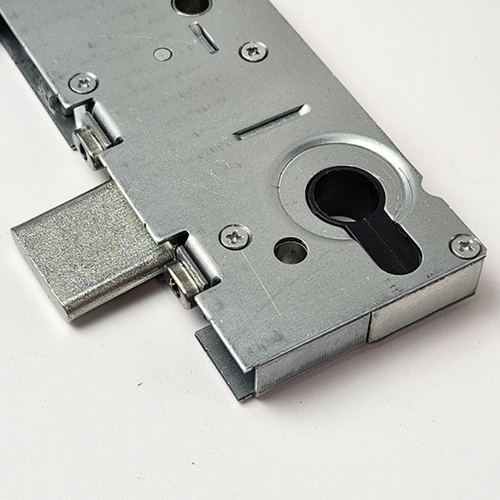

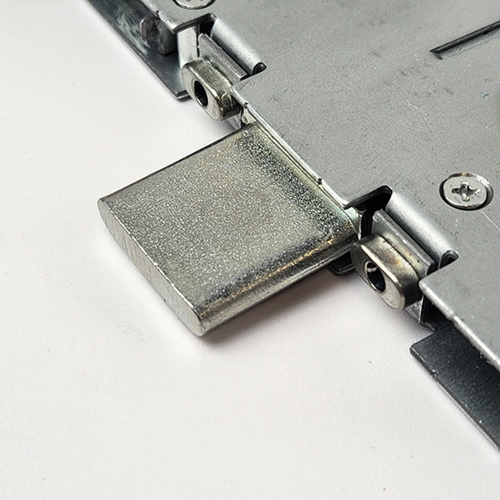

Gearbox deadbolts project 20mm and are 32mm high. The latch is 30mm high and projects 10mm. There is 63mm between the bottom of the latch and the top of the deadbolt.

Centres are positioned at 62mm and 92mm, with the top spindle being 122mm from the bottom of the case. Single spindle locks have a round hole where the second spindle would normally be located. The gearbox is pierced to accept a bolt through fixing 19mm from the top spindle, and the slot above that, for fixings is 42mm above the spindle.

We stock a range of associated products for Elite Keywind gearboxes, including multipoint door locks, keeps, spindles, handles and accessories.

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Turn the key to throw and engage or “wind” out the locking points.

To unlock the door

1. Turn the key to unlock the door by “unwinding” the locking points.

2. A further quarter turn of the key will retract the latch.
