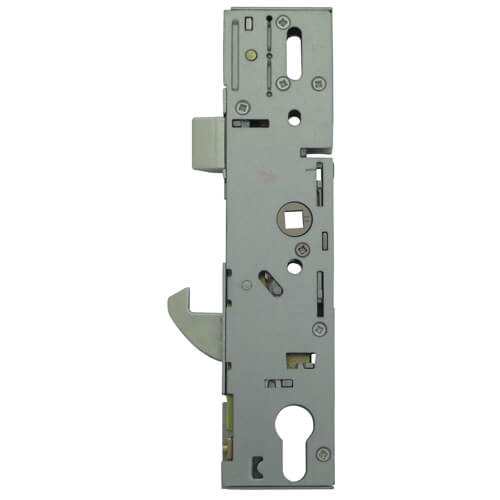

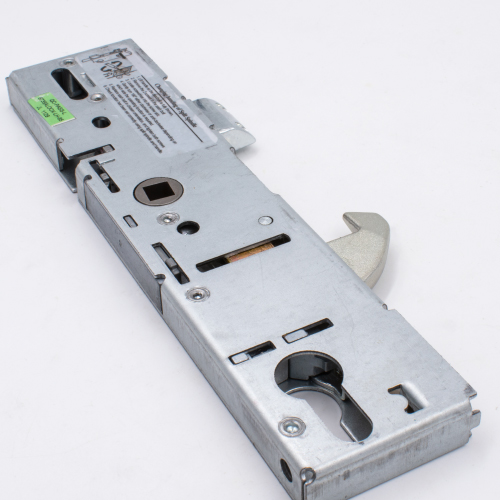

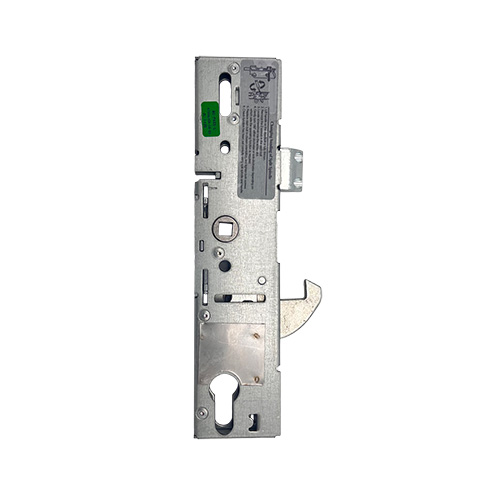

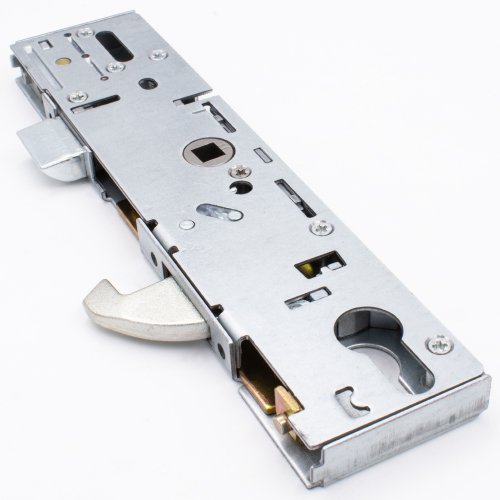

ERA Hookbolt Genuine Multipoint Gearbox – Lift Lever or Split Spindle

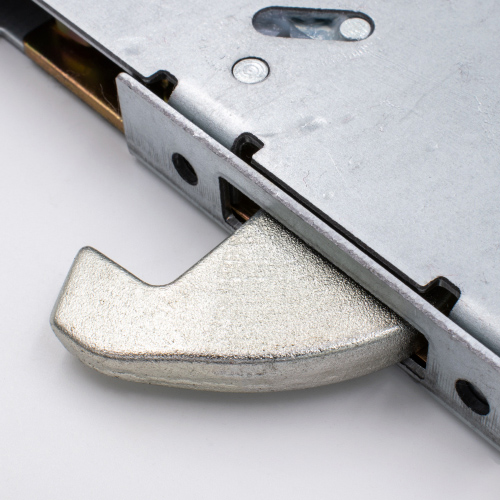

This version of the ERA gearbox features a hookbolt, rather than a deadbolt but is otherwise dimensionally identical.

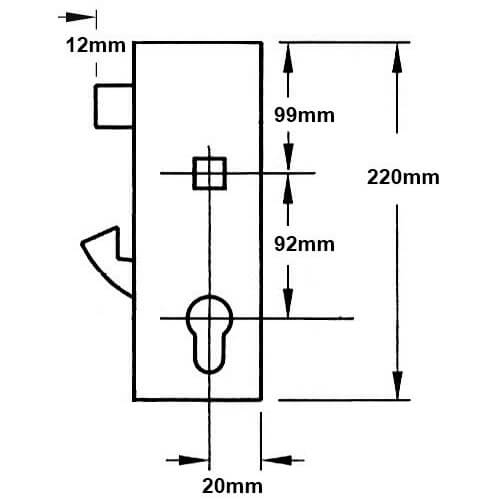

ERA multipoint door lock gearboxes are very distinctive, with a square design and no corner cut-outs. The overall length of the gearbox is 221mm and the width is the backset plus 18mm.

Available in 30mm, 35mm, or 45mm backsets, all ERA gearboxes have the same dimensions. This lock features a 5mm thick deadbolt as opposed to 6mm on the standard version.

With the exception of the British Standard Fortress lock, all ERA gearboxes can be interchanged, so if your client needs a hook lock, instead of a deadbolt or a Vectis locking multipoint door lock, contact us and we’ll build the lock to order.

ERA multipoint door lock gearboxes feature a 24mm high latch (with 2 distinctive screws in the latch), a 30mm high deadbolt, and 61mm between them. Gearboxes are held onto the faceplate with 4 screws, which is unusual for a multipoint door lock. The first screw hole to the second measures 37mm, the second to the third measures 85mm, and the third to the fourth screw measures 43mm.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

We stock a range of associated products for ERA Hookbolt gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

A Bi-Fold version with additional bolt holes and a different style of hook is available – Part Number ERABICASE35.

ERA locks are also rebranded under the names Homesafe – Cego Surelock – Saracen – Spartan – Duraflex – Sapa – Westward

Operation: Lift lever or split spindle

Latch reversal: Undo the screws in the latch to remove. Reverse and reinsert then replace screws.

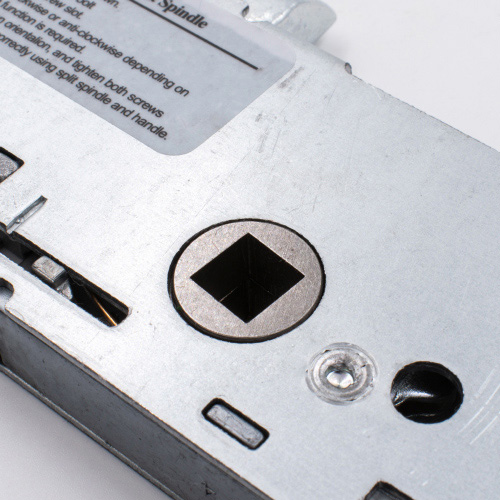

Nightlatch split spindle reversal: Remove the latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return the latch to the correct position.

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.
