Eurocell Aspect Top Guide

20 products sold in last 2 hours
Selling fast! Over 13 people have in their cart
21 people are viewing this right now

A replacement top guide to repair existing bifold installations, featuring a 160 x 60mm support bar

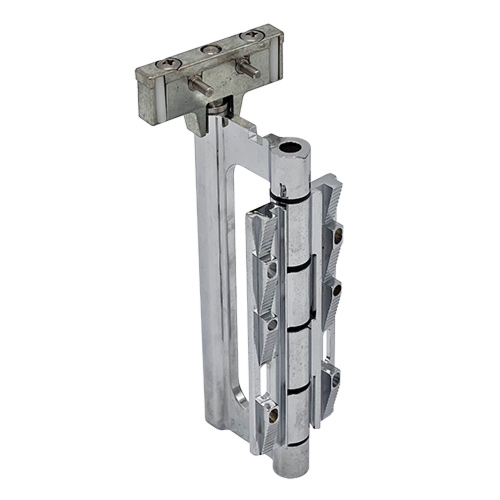

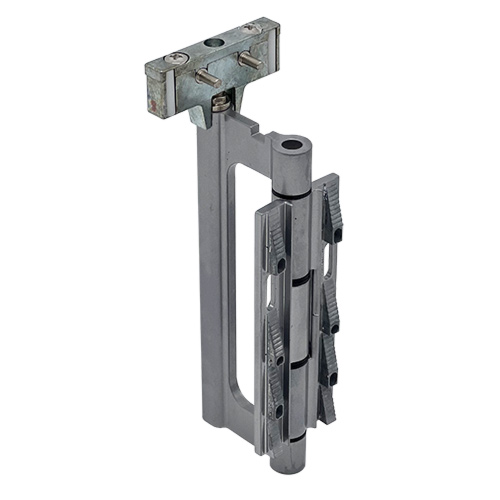

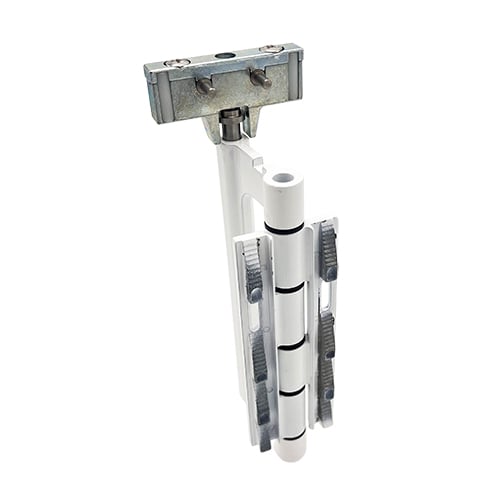

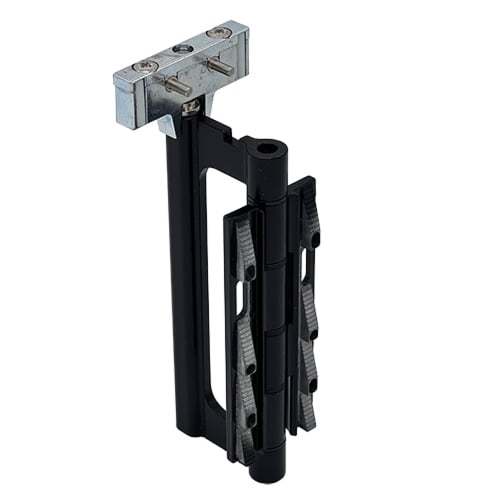

This top guide assembly is used above the roller at the top of bi-fold door installations wherever two hinged door leaves sit in the running track. It works with the bifold roller to support moving door panels at the top to ensure that the door stays in the track. This top guide can also be used as a bottom roller by inverting and adding rollers from the bottom rollers that you are replacing.

Type

Top Guide
Colour

28831, 28862, 28957, 29066, Black, Chrome, Satin Chrome, White
overall-height

31559

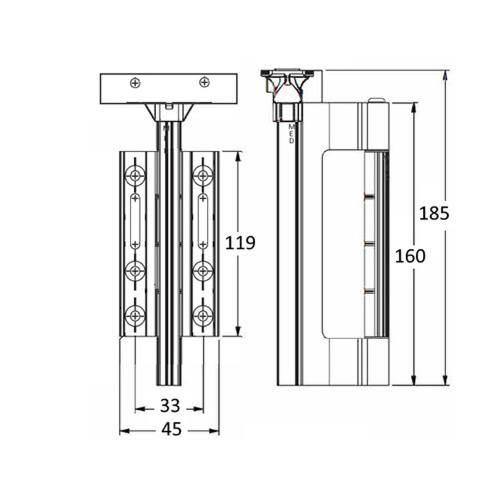

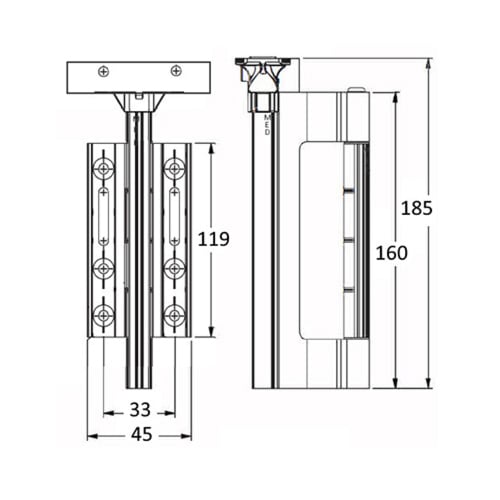

Hinge Height

119mm
Hinge Width When Open

45mm
Diameter of Knuckle

15.8mm
Hinge Screw Centres

33mm
Fixing Holes

4
Countersunk Fixing Holes

4
Top to Bottom Fixing Hole

72mm
Top to Middle Fixing Hole

45mm
Middle to Bottom Fixing Hole

26mm
2nd to 4th Fixing Hole

24mm-34mm
