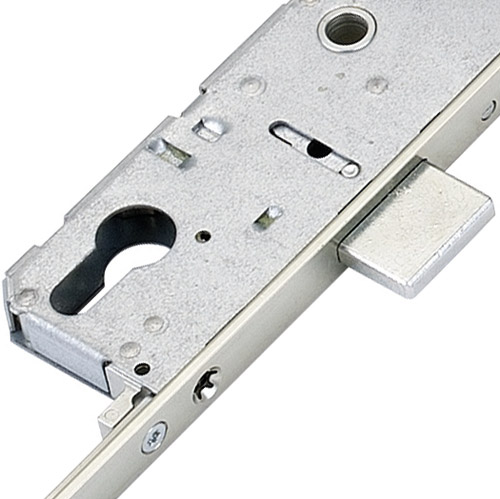

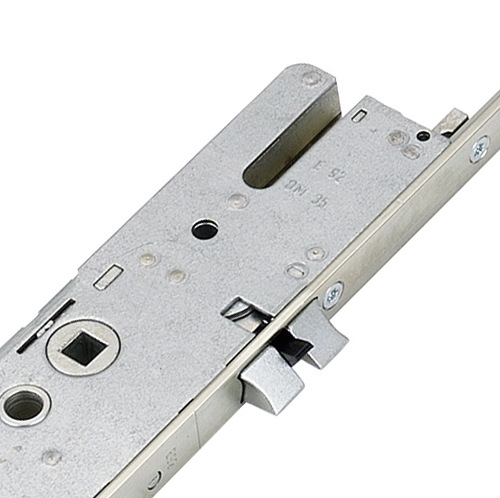

Maco Latch Deadbolt and 4 Hooks Multipoint Door Lock
24 people are viewing this right now
This part is discontinued and is no longer available.
However, for part 233063: 1609520 is a potential alternative. This is a close match but the hooks are in slightly different positions. Therefore some adjustment will be required to the keeps to line up with the new lock.
| discontinued | 28839 |
|---|---|
| Backset | 29318, 45mm |
| centres-pz | 29273 |
| Faceplate | 28842, Flat 16mm – Square Ends |
| Spindle Size | 28843 |

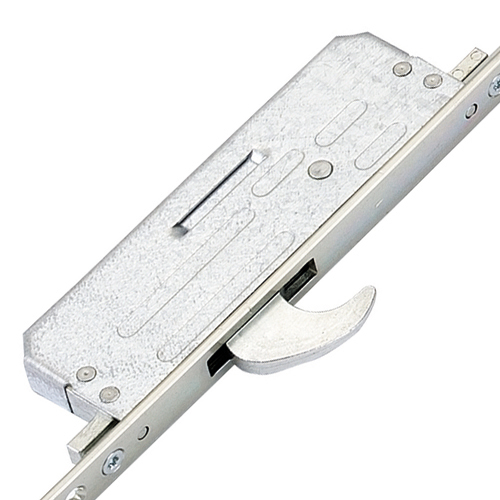

| hooks | 30366 |
| deadbolts | 28845 |
| latch | 29404 |
| main-gearbox | 28846 |
| Operation | 29767, Lift Lever |
| shootbolt-attachments | 29875 |
| spindle | 29406 |
| 1-2-or-3-piece | 28849 |
| Handing | 28834 |

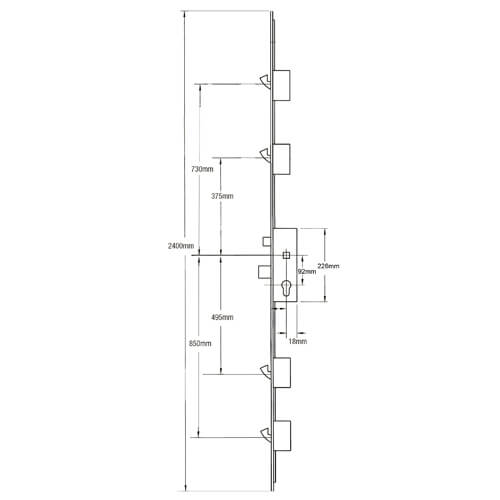

| Distance Between Inner Locking Points | 870mm |
| Distance Between Outer Locking Points | 1580mm |
| height | 30329 |
| top-hook-to-spindle | 29744 |
| bottom-hook-to-spindle | 30367 |
