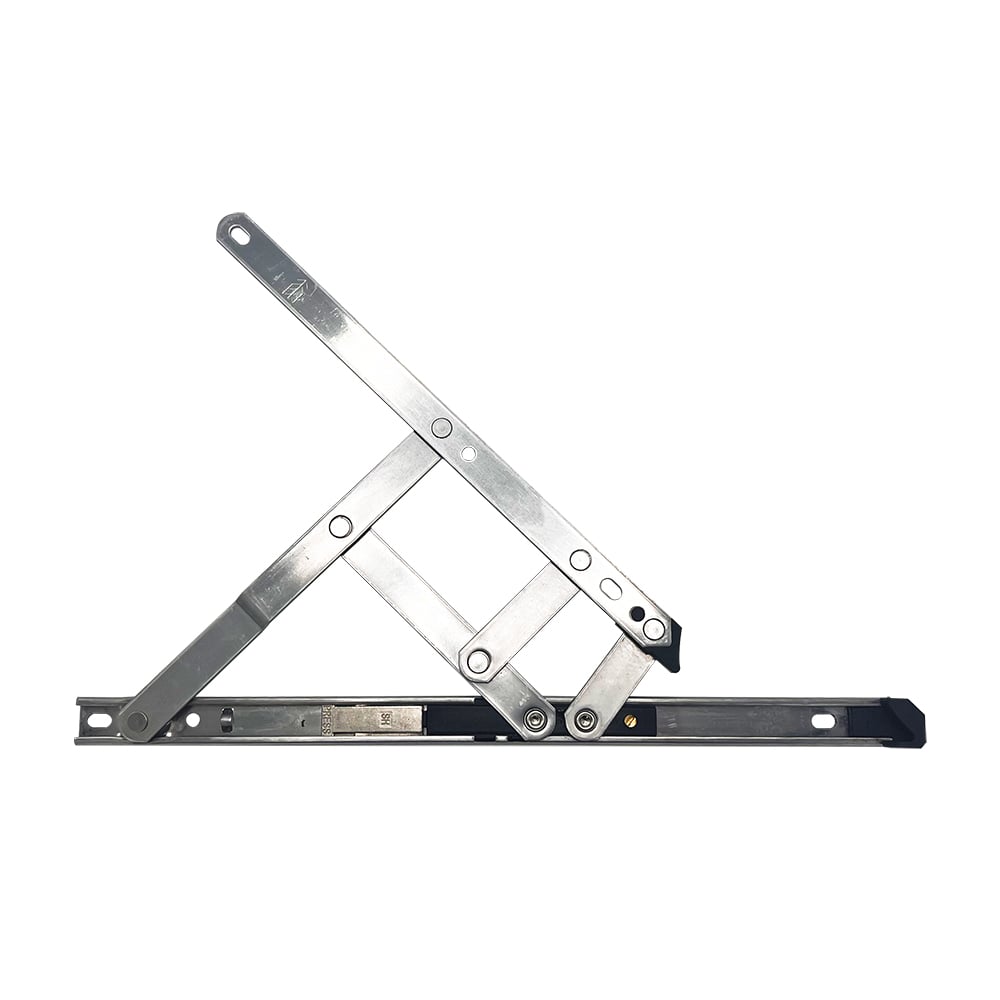

TSS Restricted Friction Stay 13mm or 17mm Stack Height
The TSS Restricted Friction Stay Range is designed to offer smooth closure and higher performance for window applications of all sizes, with built-in Restrictors for use in applications where Windows should not be fully opened.

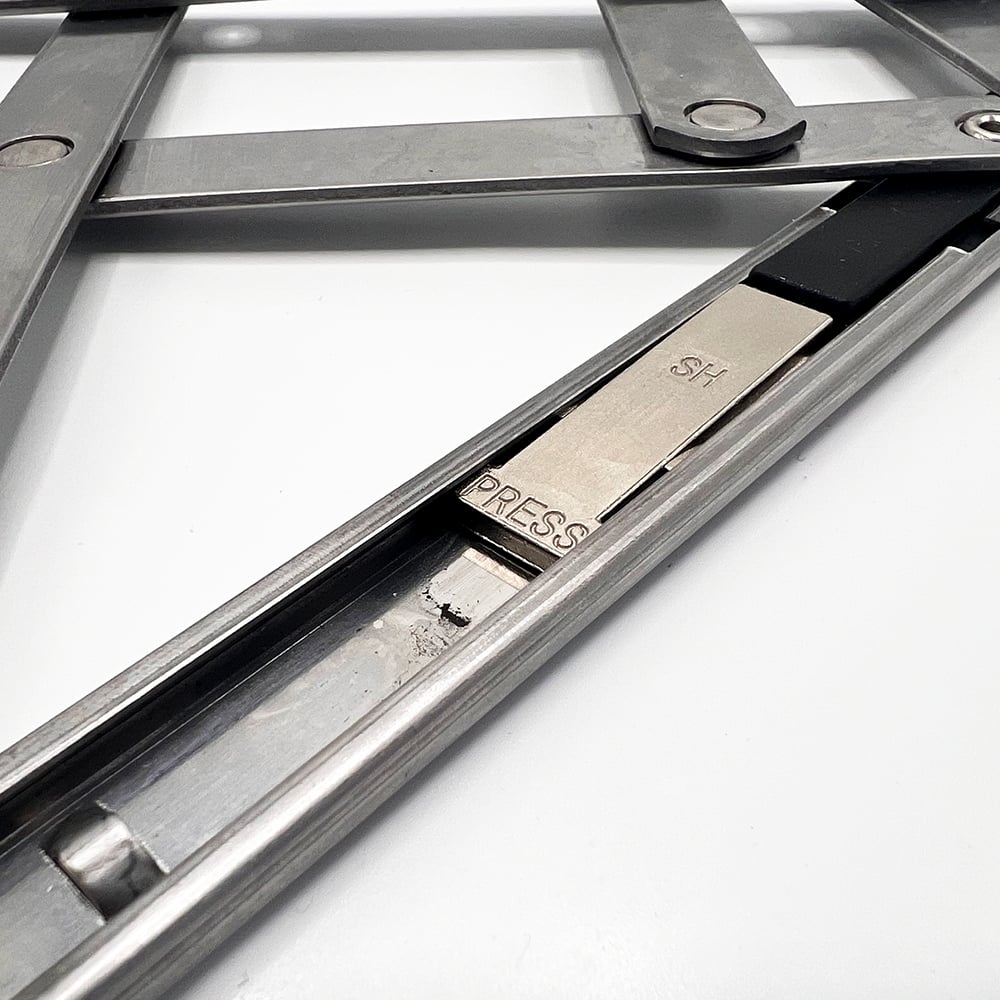

A built-in mechanism restricts initial opening with a release that allows for a full opening for ease of cleaning and ventilation.
Supplied In Pairs:
Top Hung =2x Restricted Stays Supplied
Side Hung = 1x Restricted Stay and 1x Non-Restricted Stay Supplied.
Available in a wide range of sizes in 13mm or 17mm stack height to suit Top Hung Windows.
The TSS Standard Friction Stays are tested to over 30,000 open and close cycles and manufactured from Ferritic Steel to ensure durability.
No Fixings supplied.

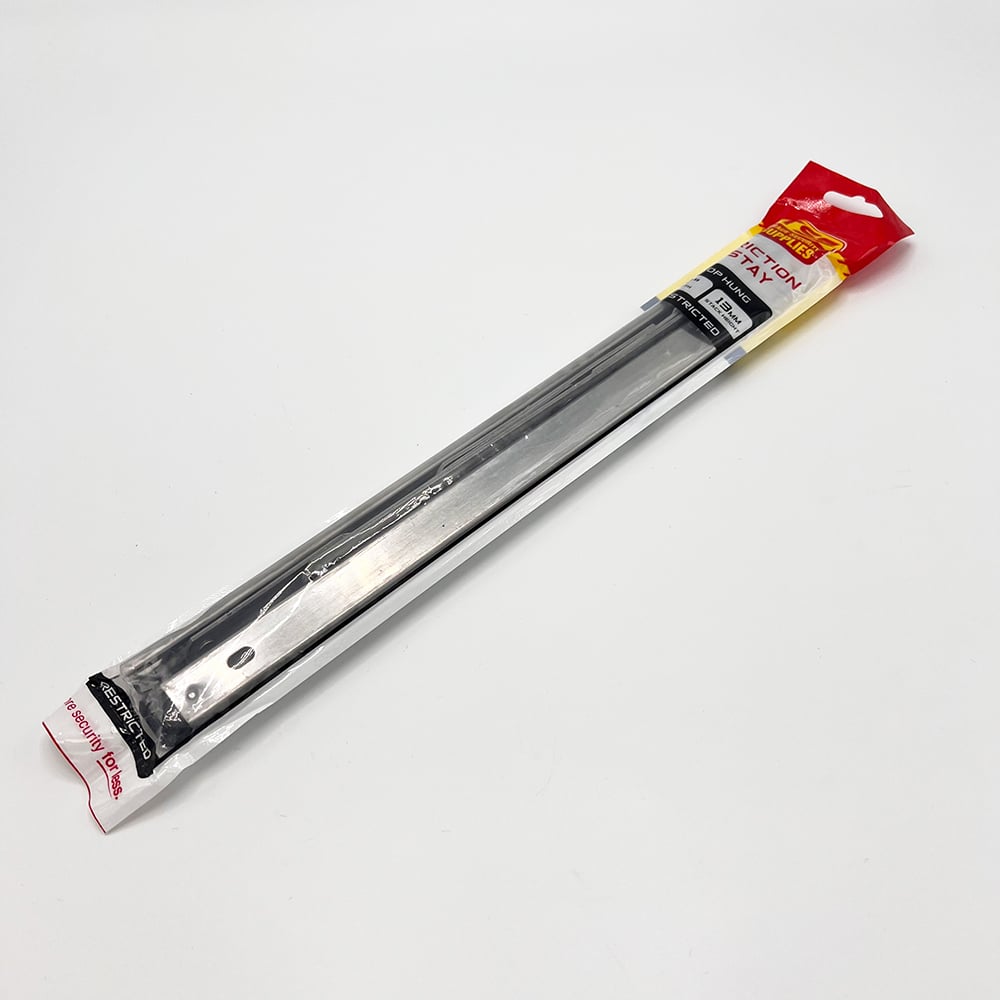

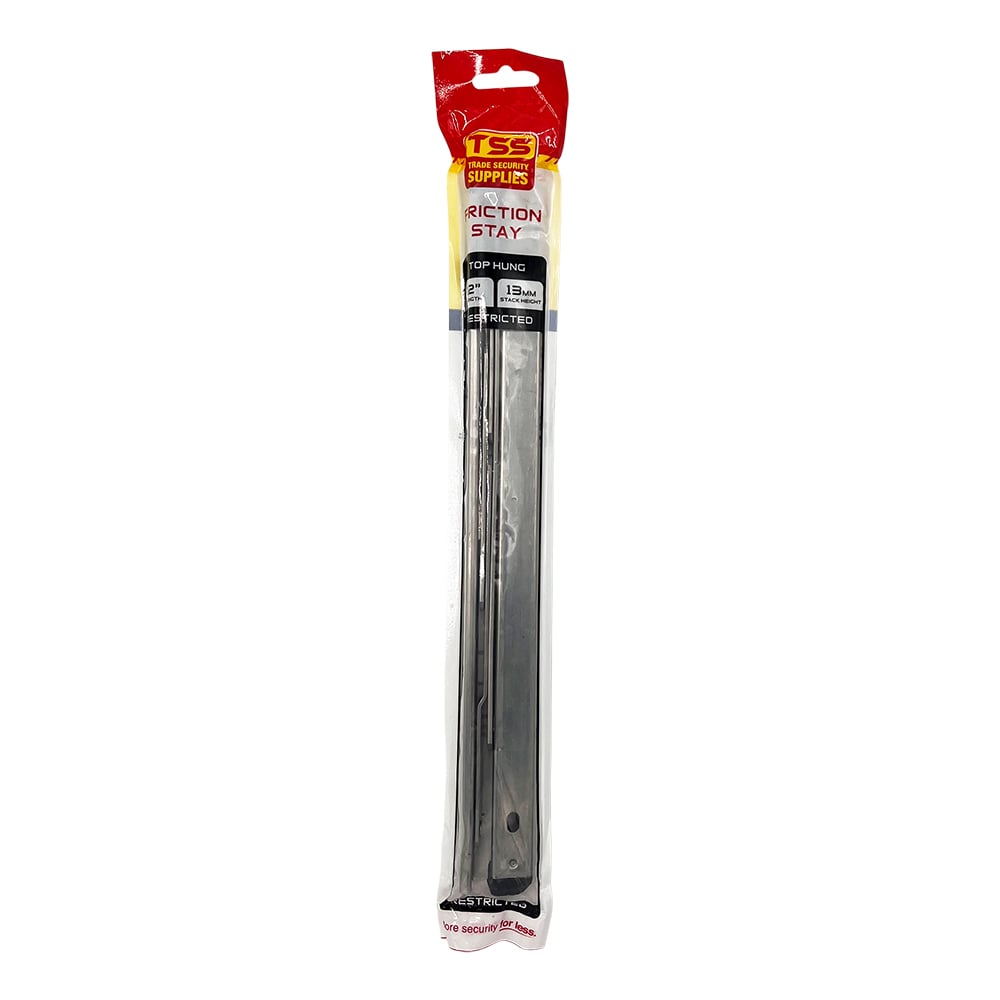

Sold in pre-bagged pairs (1x Left Hand / 1x Right Hand)
- Available in 12″, 16″, 20″ and 24″ overall lengths
- Available in 13mm and 17mm Stack heights
- Friction Stay width 8mm
- Tested over 30,000 open/close cycles
- Supplied In Bagged Pairs
- 12″ Top Hung – Opening Angle 65 Degrees – Max Weight 21KG – Max Window (W) 1100mm x (H) 600mm
- 16″ Top Hung – Opening Angle 52 Degrees – Max Weight 22KG – Max Window (W) 1200mm x (H) 750mm
- 20″ Top Hung – Opening Angle 43 Degrees – Max Weight 24KG – Max Window (W) 1200mm x (H) 1000mm
- 24″ Top Hung – Opening Angle 38 Degrees – Max Weight 40KG – Max Window (W) 1200mm x (H) 1000mm
- 12″ Side Hung – Opening Angle 65 Degrees – Max Weight 21KG – Max Window (W) 600mm x (H) 1100mm
- 16″ Side Hung – Opening Angle 52 Degrees – Max Weight 22KG – Max Window (W) 750mm x (H) 1200mm
| Top or Side Hung | Top Hung, Side Hung |
|---|---|
| Stack Height | 13mm, 17mm |
| Length | 12 inch / 300mm, 16 inch / 400mm, 20 inch / 500mm, 24 inch / 600mm |
| Type | 1x LH Restricted / 1x RH Restricted, 1x LH Restricted / 1x RH Standard, 1x RH Restricted / 1x LH Standard, 1x LH Restricted / 1x RH Standard |
