VERSA V-WIN Inline Locking Espag UPVC Window Handles

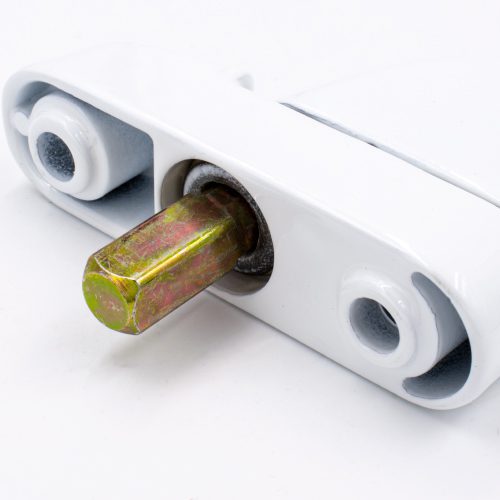

This easy-to-use, unique window handle comes with 5 magnetic spindles in varying sizes to remove the need to cut spindles down on-site.

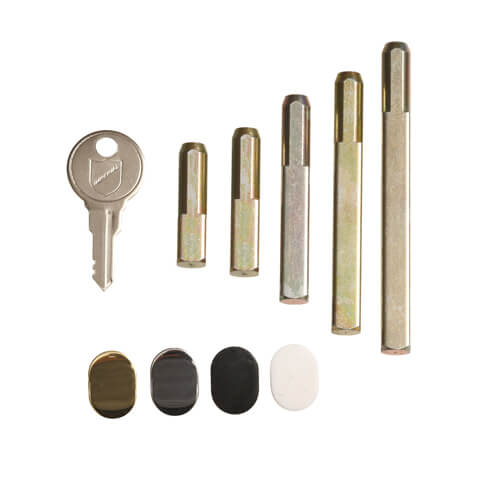

Buttons are also interchangeable to egress, nonlocking, and black locking (white buttons are supplied on white handles and black on the rest of the range).
Supplied with croppable screws allowing for retrofitting to a range of window profiles.
(V-WINTPW – Trade pack contains x20 handles, no fixing screws, no spindles.)
Comes with one key, for extras the code is V-WINKEY.
- Built-in stop to prevent excessive force on the espagnolette gearbox
- Supplied with one key and quick cut retaining bolts

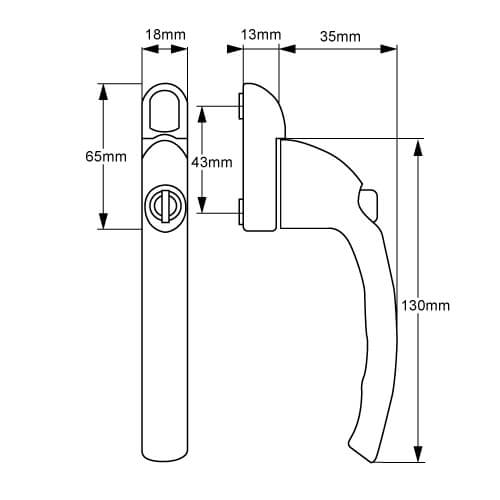

- Backplate: 70mm x 17mm
- Screw centres : 43mm
- Metallised screw covers on all plated versions
- High-quality zinc die-cast construction
- Available in PVD Gold, White, Satin Chrome, Black and Polished Chrome
- Supplied bagged

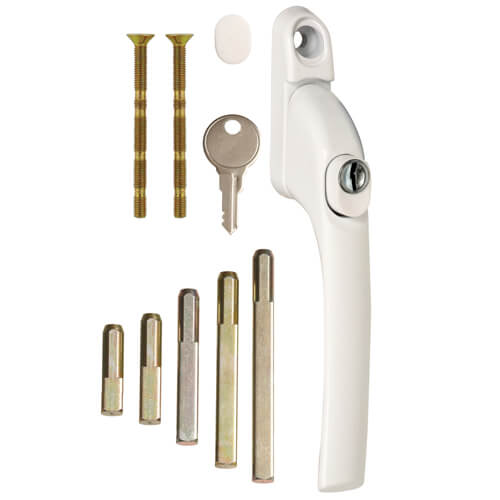

- Contents included: 1 x key, 10, 15, 30, 43 and 55mm spindles, x2 bolts
- Extra keys code: V-WINKEY
- V-WINTPW – Trade pack contains x20 handles, no fixing screws, no spindles.
| Colour | Black, Chrome, Gold, Satin Chrome, White |
|---|---|
| Spindle Length | 1 x 10mm / 1 x 15mm / 1 x 30mm / 1 x 43mm / 1 x 55mm, No Spindle Trade Pack |
