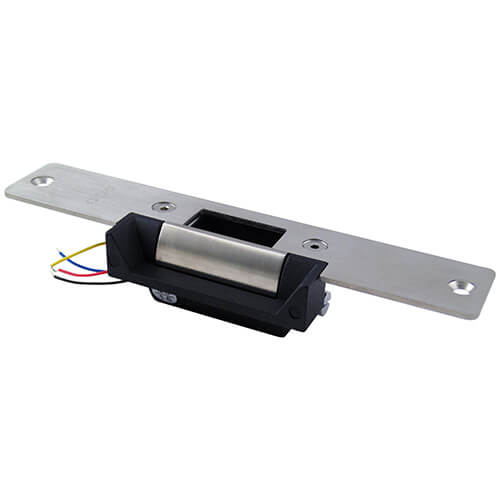

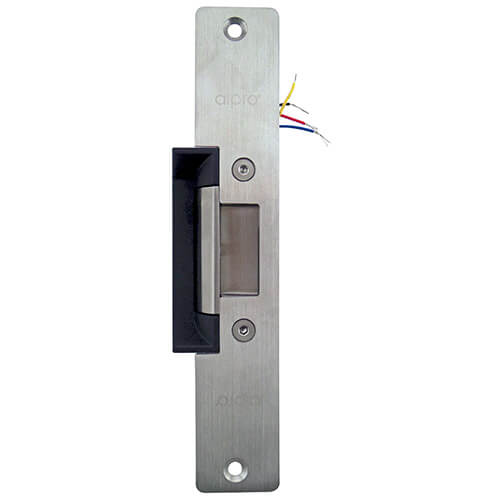

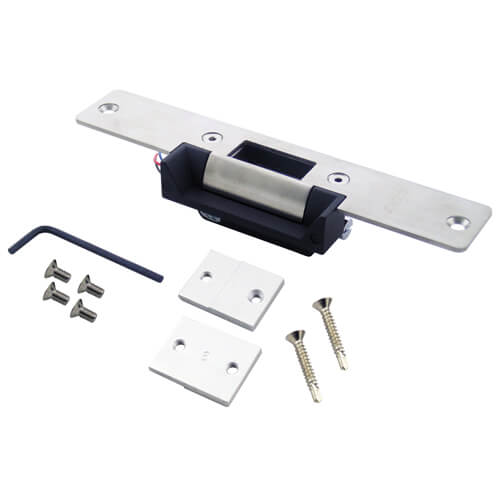

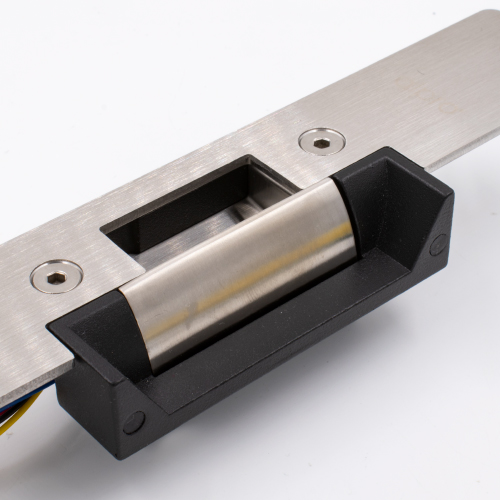

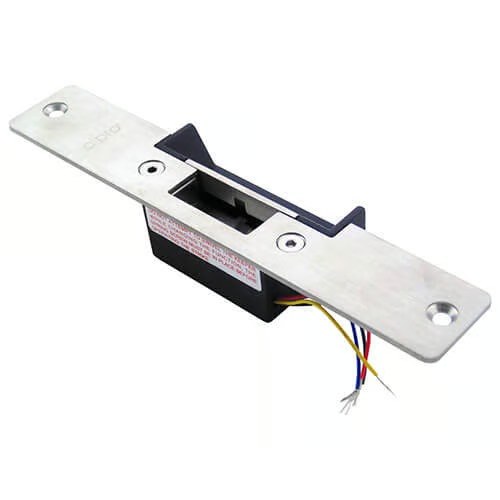

Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate

15 products sold in last 4 hours
Selling fast! Over 14 people have in their cart

This Alpro ANSI style release features a long faceplate and is suitable for use on timber doors. Often used in conjunction with mortice latches, the item features a 200mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes. An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.

Add to wishlist
27 people are viewing this right now
  • Type: Mortice.
  • Style: ANSI.
  • Jaw: Non adjustable
  • Dimensions: (H) 200mm x (W) 44.5mm x (D) 35mm.
  • Field Reversible: Fail safe / fail secure.
  • Current Consumption: 200mA at12v DC, 100mA at 24v DC.
  • Holding Force: 1750kg.
  • Latch Accommodation: 13mm (incl. 3mm air gap).
Operation

Fail Safe, Fail Secure
